16 CFR Part 1633（内容）
1、在30分钟的测试时间内，床垫/床垫套装的量热释放峰值不得超过200千瓦(kW)。
2、在测试的最初10分钟内，总热释放量不能超过15兆焦耳(MJ)。
在电脑上面观察,1:在前30min以内没有在任何一个时间段热量释放率(The peakrate of heatrelease)超过200KW,2:在前10min内总释放热量(TheTotal heat release)不超过15MJ;如果达到这两点要求则视此样品通过标准要求，否则为不通过。
CFRTitle 16 Part 1633–Standard for
the Flammability (Open Flame) of Mattress Sets, March 15, 2006 (Effective compliance date July 1, 2007) (Revised as of January 1,
2010) |
Test Category Requested: Qualified Prototype (3 mattress sets) |
As defined by CFR Title 16 Part 1633, a“mattressset”can either be a mattress without a foundation
or a mattress with a foundation.
The sale of mattresses tested
without foundations might be limited
to that configuration. |
Test Item Submitted: Mattress without Foundation |
Greater than59ºF Less than 80.6ºF |
Relative Humidity: Timelag between conditioning room & test start: Procedure: |
Thesample was
conditioned before testing for at
least 48 hours at greater than65ºFand less than 77ºFand a relative humidity less than 55%. |

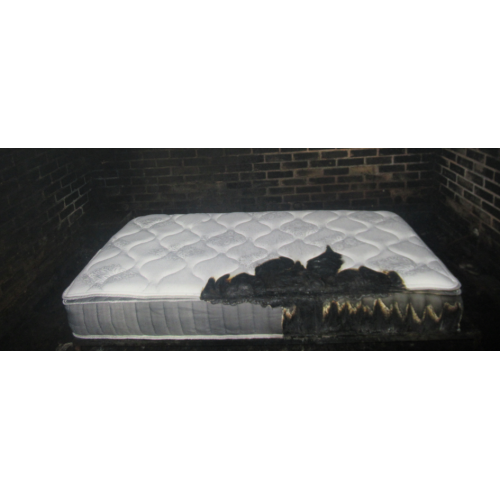

The mattress was
placed on a metal test frame inside a test room having
dimensions of10’X12’with and8’high ceiling. The mattress and frame were located on the wall opposite the doorway. The room is configured in accordance with Test Room Layout
Option B as specified in 16 CFR 1633. |
The ignition source was the NIST Dual Burner System constructed of stainless steel tubing in accordance with the Section
6 Ignition Source and Figure 7. The fuel used was commercial propane delivered at a rate
of 12.9 l/minto the top
burner for a total time of 70
seconds and a rate of 6.6 l/min to the side
burner for a total time of 50 seconds. |
After ignition of the
burner, we monitored recorded certain properties of the
test procedure. These properties are |
Heat Release Rate, Total Heat and ceiling temperature directly over the specimen at4”below the ceiling
