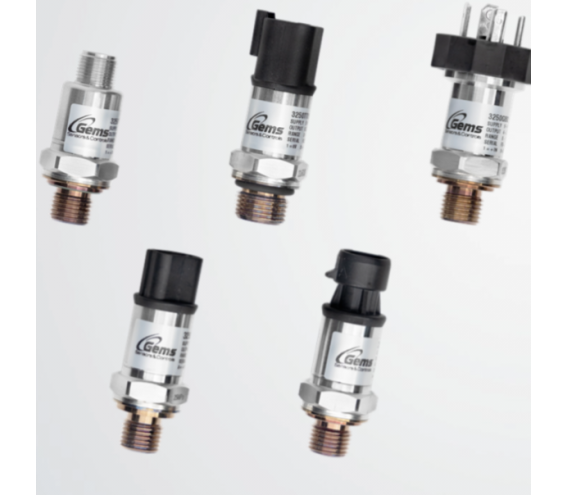

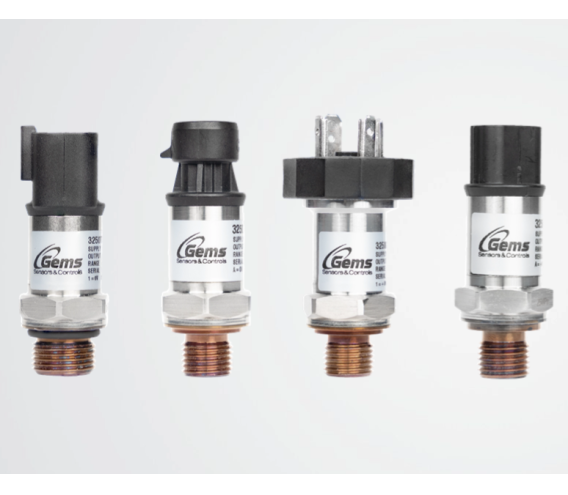

gems捷迈经济型压力变送器3250系列

▶ 压力范围 0～50bar 至 0～600bar

▶ 优秀的电磁兼容性

▶ 高耐压性能

▶ 多种电气接口、压力接口和输出类型可选

3250系列压力传感器具有的性价比，是高性能、高可靠性和高稳定性的新一代产品, 其多种电气输出类型、压力接口和电气接口可满足大多数OEM用户的产品配置要求,同时具有出色的耐压力冲击特性，能够在压力变化的环境中稳定工作,此外产品具备的EMC性能，可有效抵抗电磁干扰保障测量的准确性和可靠性

GEMS 3250压力变送器的技术规格

压力范围 较小 0～50bar 至 较大0～600bar

压力类型 表压

耐压 2×FS

供电电压 10V～30V

5V±10% (仅比例电压输出)

电流输出 4～20mA

电压输出 0～10V

0.5～4.5V 比例电压输出

精度（非线性、迟滞、重复性) ±0.25%FS

零点误差 ±0.5%FS

满程误差 ±0.5%FS

总误差T.E.B ≤ ±2.5%FS

工作温度范围 40°C～125°C

补偿温度范围 20°C～85°C

设计疲劳寿命 >10,000,000 次

压力接口类型 请参看“压力接口”

电气连接类型 M12*1P、Deutsch 4Pin、Simitomo 3Pin 、Large DIN

冲击、振动 50g EN 60068227, 20g (10...2000 Hz) DIN EN 6006826

防护等级 IP67、IP65 (Large DIN)

接液部件: 174 PH不锈钢

材料

外壳: AISI 304

认证 CE、RoHS

主要型号有：420mA输出3250TB0050S05ER00,3250TB0160S05ER00,3250TB0250S05ER00,3250TB0400S05ER00,3250TB0500S05ER00,3250TB0050S01ER00,3250TB0160S01ER00,3250TB0250S01ER00,3250TB0400S01ER00,3250TB0500S01ER00,3250TB0050S5PER00,3250TB0160S5PER00,3250TB0250S5PER00,3250TB0400S5PER00,3250TB0500S5PER00,3250TB0050S2LER00,3250TB0160S2LER00,3250TB0250S2LER00,3250TB0400S2LER00,3250TB0500S2LER00

010V输出3250TH0050S05ER00,3250TH0160S05ER00,3250TH0250S05ER00,3250TH0400S05ER00,3250TH0500S05ER00,3250TH0050S01ER00,3250TH0160S01ER00,3250TH0250S01ER00,3250TH0400S01ER00,3250TH0500S01ER00,3250TH0050S5PER00,3250TH0160S5PER00,3250TH0250S5PER00,3250TH0400S5PER00,3250TH0500S5PER00,3250TH0050S2LER00,3250TH0160S2LER00,3250TH0250S2LER00,3250TH0400S2LER00,3250TH0500S2LER00

0.54.5V 比例输出3250TT0050S05ER00,3250TT0160S05ER00,3250TT0250S05ER00,3250TT0400S05ER00,3250TT0500S05ER00,3250TT0050S01ER00,3250TT0160S01ER00,3250TT0250S01ER00,3250TT0400S01ER00,3250TT0500S01ER00,3250TT0050S5PER00,3250TT0160S5PER00,3250TT0250S5PER00,3250TT0400S5PER00,3250TT0500S5PER00,3250TT0050S2LER00,3250TT0160S2LER00,3250TT0250S2LER00,3250TT0400S2LER00,3250TT0500S2LER00

3100和3200系列紧凑型溅射薄膜压力传感器具有的性价比, 是适合 OEM  应用的高性能、高可靠性和高稳定性的产品。全不锈钢湿式部件，多种电气和压力接口选择，丰富的电信号输出，这些特点满足了传感器可应用于绝大多数的场合。传感器的核心部件是具有非常好的温度特性的溅射薄膜元件。3100 的生产过程引入了的自动化设备，可批量生产一致性程度高，性价比的压力变送器。
