价格：
行业分类：电工电气/高压电器/防雷避雷产品
产品类别：
品 牌：英国MTL浪涌保护器
规格型号：ZS12100,ZS12101,*ZS12103,ZS12104,ZS12107,ZS12108,*ZS12110
库 存：50
生 产 商：英国MTL
产 地：中国广东省深圳市
ZoneSentinel Series
Specifi cations
Maximum continuous operating voltage
120V — 140Vac
277V — 320Vac
Lines protected
L-N 50kA, L-G 50kA, L-L 100kA, N-G 50kA
Duty cycle performance (8/20μs)
50,000A >4 impulses
10,000A >6,000 impulses
100A infi nite
Impulse current for class I (Iimp)
20kA (10/350μs)
Long duration current pulse (10/1,000μs)
capability
3,600A (tested)
Ambient temperature limits
-40°F to +185°F (working)
-40°C to +85°C (working)
Humidity
95% RH (non-condensing)
Enclosure
NEMA 1, 2, 3, 3S, 4, 4X, 12 & 13 (IP66)
Terminals
2 AWG (32mm2)
Mounting
Surface mount by 0.31” (8mm) diameter
holes
Indication
Continuous visual status monitoring
Green LED Lit = Full protection
Red LED Lit = Reduced (Standby) OR
No protection
Green LED out = No power to protector
Red & Green LED Lit = High N-G voltage
Remote contacts
NO/NC
Weight
4 lbs (1.8Kg)
Dimensions

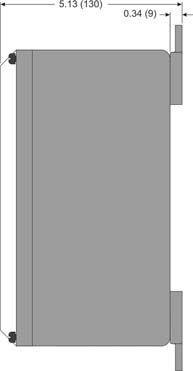

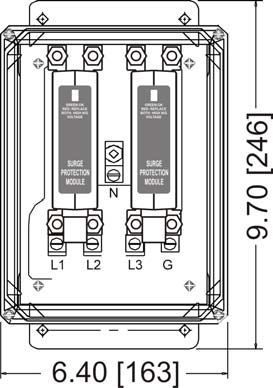

Enclosure — see fi gure 1
EMC compliance
EN 60950: 1992
EN 61000-6-2: 1999
| Model | Maximum surge current Imax (kA) | Working voltage(V) | UL SVR 2nd Edition(V) | ULVPR 3rd Edition(V) | Limiting voltage | Phase types | |
| @ 3kA(V) | @10kA (In)(V) | ||||||
| ZS12100 | 100 | 120/240 split | 330 | 600 | 456 | 550 | Split phase 3 wire |
| ZS12101 | 100 | 120/208 | 330 | 600 | 456 | 550 | Three phase 4 wire WYE |
| *ZS12103 | 100 | 240 | —— | —— | 825 | 950 | Three phase 3 wire Delta |
| ZS12104 | 100 | 277/480 | 700 | 1000 | 825 | 950 | Three phase 4 wire WYE |
| ZS12107 | 100 | 220/380 | 700 | 1000 | 825 | 950 | Three phase 4 wire WYE |
| ZS12108 | 100 | 240/415 | 700 | 1000 | 825 | 950 | Three phase 4 wire WYE |
| *ZS12110 | 100 | 240 | —— | —— | 825 | 950 | Single phase 2 wire |
规格参数
行业分类：
电工电气/高压电器/防雷避雷产品
产品类别：
品 牌：
英国MTL浪涌保护器
规格型号：
ZS12100,ZS12101,*ZS12103,ZS12104,ZS12107,ZS12108,*ZS12110
库 存：
50
生 产 商：
英国MTL
产 地：
中国广东省深圳市
